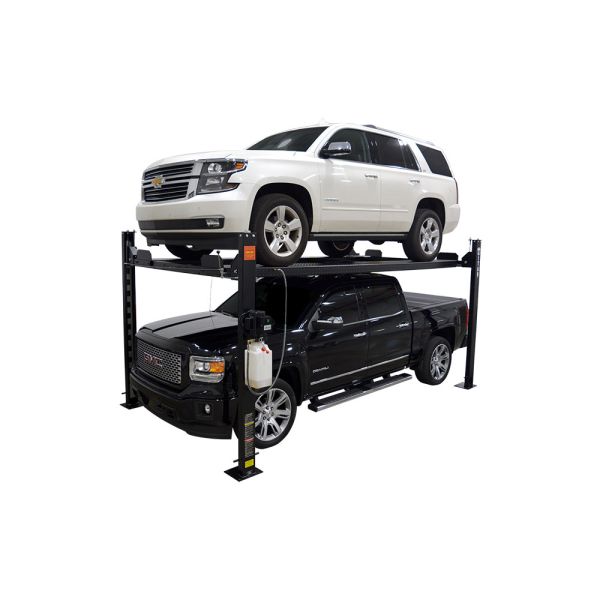

Titan SDPL-8000XLT 4-Post Lift
8,000 lb lifting capacity
Longer and more under-car clearance than our standard model
Aircraft quality cables rated at 14,500 lb
18-5/8" wide runways formed with one-piece 3/16" non-skid diamond plate
Single point safety lock release handle located near power unit
Primary locking system with secondary slack safety lock
Large 3" diameter cylinder
Powder coated in midnight black finish
Diamond plated steel approach ramps
1 Year Electric/Hydraulic Warranty
5 Year Structural Warranty
Inclued:
Caster Kit
Jack tray
3 Drip Trays
Steel Ramps
SPECIFICATIONS
Center of Baseplates - Width99-1/4"
Outside of Baseplates - Width109-1/2"
Outside of Columns - Width106-3/4"
Width Between Columns100-3/8"
Overall Width w/Motor120-3/4"
Drive-Thru86-1/2"
Between Runways43-1/4"
Out to Out - Runways80-3/4"
Length of Runway180-1/2"
Width of Runway18-5/8"
Total Length of Ramp37"
Baseplate Dimensions10-1/4" x 12"
Column Dimensions3-1/4" x 6"
Center of Baseplates - Length178-1/2"
Outside of Baseplates - Length190-1/2"
Outside of Columns - Length183-1/2"
Inside of Columns - Length171"
Overall Length w/Ramps226-1/2"
Lifting Height4-3/4" - 82-1/4"
Overall Height94-1/8"
Lifting Capacity8,000 lb
Net Weight1,753 lb
Power Unit110V-120V, 60Hz, 3HP/Single Phase, 3 prong power plug, 20AMP Shipping Info:
Shipping Length184"
Shipping Width22"
Shipping Height40"
Shipping Weight1,800 lb
